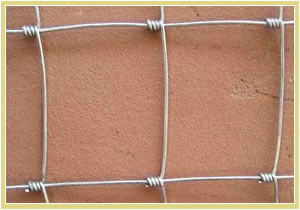

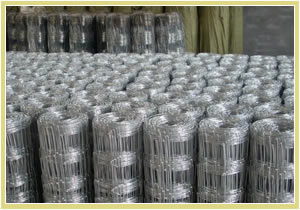

The cattle fence are also known as field fence, grassland fence, livestock fence, horse fence, deer fence, sheep wire knotted wire mesh fence. We can manufacture the cattle fence according to the customer.
Material: hot-dipped galvanized wire, which made of Q235 iron rod.
The tensile strength of the horizontal wire: more than 80-90kg/mm2
The tensile strength of the vertical wire: more than 40-50kg/mm2
The standard specification of cattle fence as follows:
| Sequence Number | Total Weight （kg） |
Edge Wire Diameter （mm） |
Inner Wire Diameter （mm） |
||
| Style | Specification | ||||
| 1 | 7/150/813/50 | 102+114+127 +140+152+178 |
19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102+114 +127+140+152 |
20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127 +140+152+178 |
21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140 +152+178+203 |
22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152 +178+203+229 |
23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102+114 +127+140+152+178 |
23.9 | 2.5 | 2.0 |
| 7 | 10/150/1245/50 | 102+114+127+140 +152+178+203+229 |
26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114 +127+140+152+178+203 |
27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140 +152+178+203+229 |
28.4 | 2.5 | 2.0 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114 +127+140+152 +178+203+229 |
30.8 | 2.5 | 2.0 |
