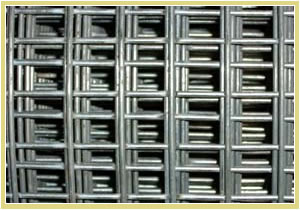

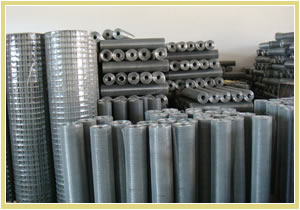

Welded wire mesh, or welded mesh, is made from choice plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.
Varieties available according to processing and finish treatment:
Welded wire mesh, galvanized before weaving
Welded wire mesh, galvanized after weaving
Welded wire mesh, thermal electroplated
Welded wire mesh, PVC coated
General roll width of Welded Mesh: 3', 4', 5', 6'
Welded Mesh Length: 100'
General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
General wire gauge (BWG): 14# to 23#.
Mesh |
Wire Diameter |
||
In Inch |
In MM |
Wire Gauge |
In MM |
1/4" x 1/4" |
6.4mm x 6.4mm |
22#-24# |
0.7mm-0.6mm |
3/8" x 3/8" |
10.6mm x 10.6mm |
19#-22# |
1.0mm-0.7mm |
1/2" x 1/2" |
12.7mm x 12.7mm |
16#-23# |
1.6mm-0.6mm |
5/8" x 5/8" |
16mm x 16mm |
18#-21# |
1.2mm-0.8mm |
3/4" x 3/4" |
19.1mm x 19.1mm |
16#-21# |
1.6mm-0.8mm |
1" x 1/2" |
25.4mm x 12.7mm |
16#-20# |
1.6mm-0.9mm |
1" x 1" |
25.4mm x 25.4mm |
14#-21# |
2.0mm-0.8mm |
11/2" x 11/2" |
38mm x 38mm |
14#-19# |
2.0mm-1.0mm |
1" x 2" |
25.4mm x 50.8mm |
14#-16# |
2.0mm-1.6mm |
2" x 2" |
50.8mm x 50.8mm |
12#-16# |
2.6mm-1.6mm |
