Hesco bastion : also named as Hesco barrier, Hesco defense wall, Hesco blast wall, sand cage, welded gabion box, defense blast wall for military use, wire mesh gabion box,
stone cage.

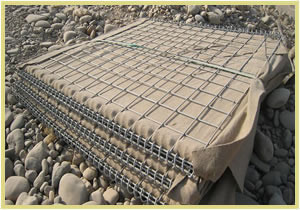

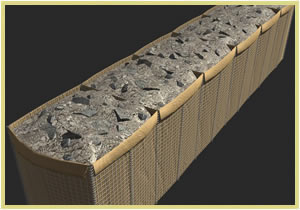

Structures and Characters: The Hesco barrier is a kind of modern gabion for Military fortification and Flood control

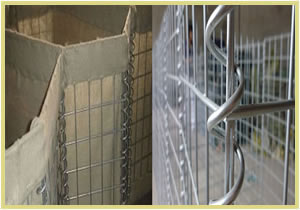

. It is made of a collapsible wire mesh container and heavy duty

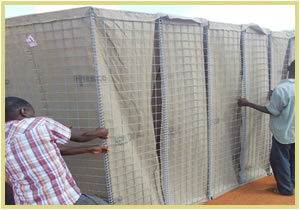

fabric liner, it can be used in separate cell or some cells joint together
Finish: Electro galvanized, hot-dipped galvanized, Galfan coated.
Specifications :
1) wire diameter: 4mm-6mm
2) hole: 2''x2'', 3''x3'', 4''x4''
3) Hesco size: 0.61x0.61m, 1.06x1.37m, 2.13x2.21m, other sizes can be produced as requested.
4) Geotextile: In non-woven geotextile, color can be white, beige-sand color.200g,250g,280g,300g
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7’ (2.12m) |
7’ (2.12m) |
95’ (03.5m) |
Mil 9B Mil 9G |
3’ 3” (1.0m) |
2’ 6” (0.76m) |
30’ (9.14m) |
Mil 8B Mil 8G |
4’ 6” (1.37m) |
2’ (1.22m) |
32’ (10m) |
Mil 7B Mil 7G |
7’ 3” (2.21m) |
7’ (2.13m) |
90’ (27.74m) |
Mil 6B Mil 6G |
5’ 6” (1.68m) |
2’ (0.61m) |
10’ (3.05m) |
Mil 5B Mil 5G |
2’ (0.61m) |
2’ (0.61m) |
10’ (13.05m) |
Mil 4B Mil 4G |
2’ (0.61m) |
5’ (1.5m) |
32’ (10m) |
Mil 3B Mil 3G |
3’ 3” (1.0m) |
3’ 3” (1.0m) |
32’ (10m) |
Mil 2B Mil 2G |
2’ (0.61m) |
2’ (0.61m) |
4’ (1.21m) |
Mil 1B Mil 1G |
4’ 6” (1.37m) |
3’ 6” (1.06m) |
32’ (10m) |
